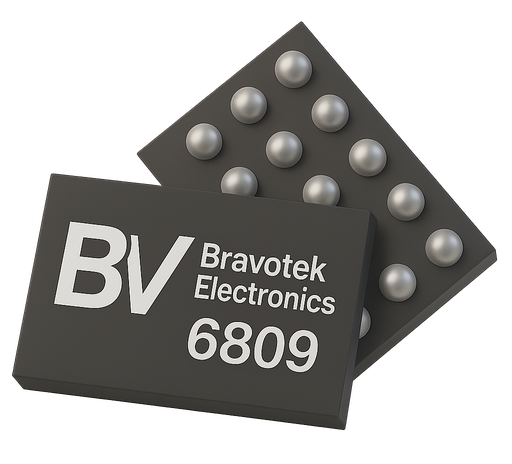

☑ WL-CSP-18B｜1.27mm × 2.72mm
A high-efficiency AMOLED PMIC with SIBO architecture for strong drive, ideal for high-brightness wearables.
• Vin Range：2.5V ~ 5.0V
• Vout Range：-8.0V ~ 5.0V
• Max Iout：250mA
• Output Rail：AVDD/OVDD/OVSS
• Vout Range：-8.0V ~ 5.0V
• Max Iout：250mA
• Output Rail：AVDD/OVDD/OVSS
☑ WL-CSP-12B｜1.39mm × 1.64mm
A compact AMOLED PMIC with SITO architecture and ripple control, optimized for low-power wearables.
• Vin Range：2.9V ~ 5.5V
• Vout Range：-4.7V ~ 5.3V
• Max Iout：80mA
• Output Rail：AVDD/OVDD/OVSS
• Vout Range：-4.7V ~ 5.3V
• Max Iout：80mA
• Output Rail：AVDD/OVDD/OVSS
☑ WL-CSP-36B | 2.60mm × 2.60mm
A high-integration AMOLED PMIC with SITBO architecture, ideal for notebook and tablet OLED displays.
Vin Range : 2.9V ~ 5.0V
Vout Range : AVDD 5.5V ~ 9.0V / VGH 8V ~ 18V / VGL -4V ~ -8V / Buck 0.9V ~ 1.95V
Max Iout : AVDD 500mA / Buck1 1.5A / Buck2 0.5A / Buck3 0.5A / VGH,VGL 50mA
Output Rail : Boost + 3 Buck + SITBO (VGH/VGL1/VGL2)
Vout Range : AVDD 5.5V ~ 9.0V / VGH 8V ~ 18V / VGL -4V ~ -8V / Buck 0.9V ~ 1.95V
Max Iout : AVDD 500mA / Buck1 1.5A / Buck2 0.5A / Buck3 0.5A / VGH,VGL 50mA
Output Rail : Boost + 3 Buck + SITBO (VGH/VGL1/VGL2)
